Create Your Evacuation
Diagram Brief

Choose the option that works best for you.
Create your evacuation diagram brief.
Use our easy online builder to complete
your brief, or upload your existing
documents and let us prepare it for you.

BUILD YOUR OWN BRIEF – $50 UPLOAD YOUR DOCUMENTS – $75

Create Your Evacuation
Diagram Brief

Choose the option that works best for you.
Create your evacuation diagram brief.
Use our easy online builder to complete
your brief, or upload your existing
documents and let us prepare it for you.

BUILD YOUR OWN BRIEF – $50 UPLOAD YOUR DOCUMENTS – $75

Do You Need New or Updated Evacuation Diagrams?

$ 50 per diagram

Easy step-by-step online builder
Add exits, routes & fire equipment
Submit your brief directly to our team

$ 75 per diagram

Upload your existing documents
We review your plans and information
Our team prepares your brief

Need an On-Site Visit by our Technician?

WATCH OUR EVACUATION DIAGRAM TUTORIAL

Creating your evacuation diagram is easier when you know what information is required.

Our step-by-step tutorial walks you through what to provide, including evacuation routes, emergency exits, fire equipment, assembly areas and other important details.

Whether you manage an office, retail store, warehouse, school, healthcare facility or multiple locations, the video will help you gather the right information before submitting your evacuation diagram request.

WHAT SHOULD YOUR EVACUATION DIAGRAM SHOW?

Essential information at a glance.

Your evacuations diagrams need to provide clear, easy-to-follow information that can be understood quickly during an emergency. Depending on your premises, this may include:

ARE YOUR EXISTING DIAGRAMS STILL CURRENT?

Have your premises changed?

If you’ve renovated, changed the internal layout, relocated fire equipment, altered an exit or moved your assembly area, your existing evacuation diagrams may no longer be accurate.

You may also have moved into premises with exiting diagrams and be unsure whether they’re still suitable. Having your diagrams reviewed and updated helps ensure your people have the right information when it matters most.

GETTING STARTED IS EASY?

Getting your evacuation diagrams on the wall is easy.

From the initial site visit through to completed diagrams, our team can guide you through the entire process.

1

Request a Quote

Contact us and tell us a little about your premises and the evacuation diagrams you require.

2

Arrange a Site Visit

One of our experienced team members will contact you to arrange a suitable time to visit your premises.

3

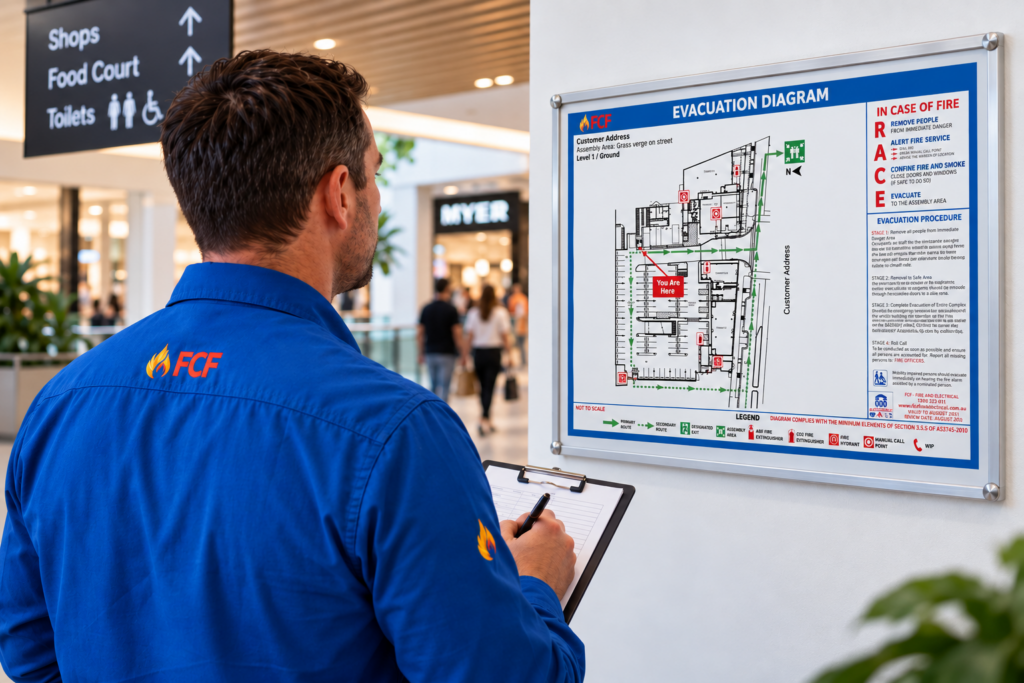

We Map Your Premises

Where required, we can attend your site to sketch and document the building layout and gather the information needed to prepare your evacuation diagrams.

4

Review & Confirm

Your diagrams are prepared for your premises and checked for correct orientation, locations and relevant evacuation information.

5

Print, Laminate & Install

We can also quote to professionally print, laminate and install your completed evacuation diagrams in the appropriate locations throughout your premises.

Need Multiple Diagrams?

We can prepare and install additional diagrams throughout your premises, with requirements quoted according to your site.

AUSTRALIAN STANDARDS

Evacuation Diagram Requirements

In accordance with AS 3745:2010, evacuation diagrams must be displayed in all facilities and should provide clear, accurate and consistent emergency and evacuation information.

Number & Location

Evacuation diagrams must be displayed in locations where occupants and visitors can easily view them. The number and exact location is determined by the Emergency Planning Committee (EPC).

Position

Diagrams should be positioned at a height of between 1200 mm and 1600 mm above finished floor level.

Orientation

Diagrams must be correctly orientated to the viewer’s location and the direction of egress. If an assembly area diagram is included, it must have the same orientation as the rest of the diagram.

Diagram Size

Minimum
Sizes as per AS 3745-2010:

A4: (210 x 297 mm) maximum elements only.

A3: (297 x 420 mm) minimum and optional elements.

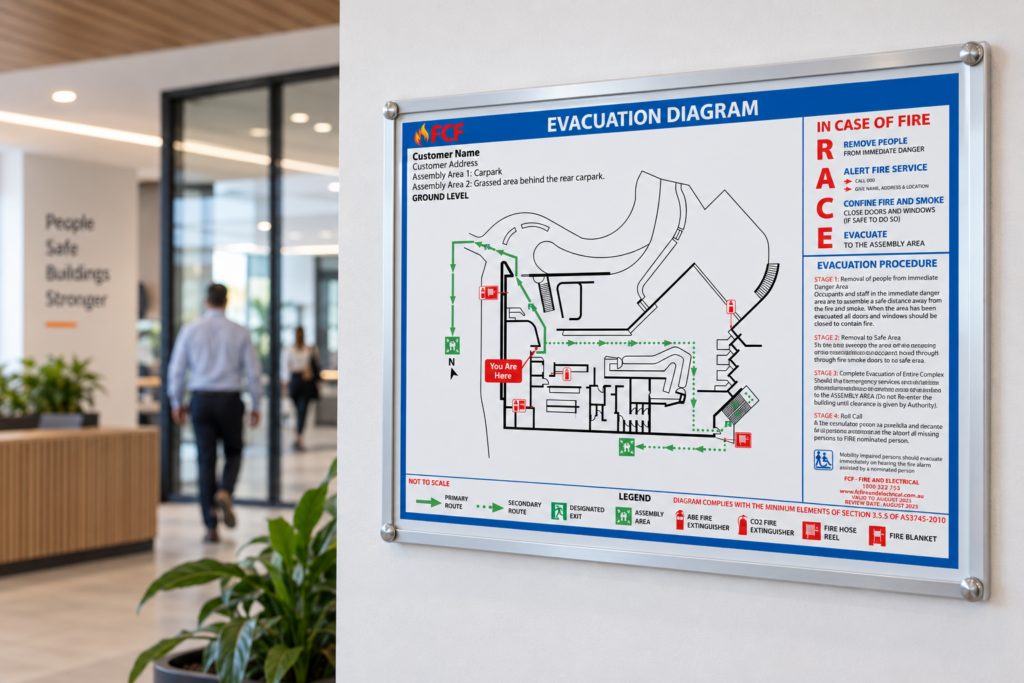

Key Elements (Required)

Each evacuation diagram must include the following minimum elements.

A pictorial representation of the floor or area
The title "EVACUATION DIAGRAM"
A clearly marked "YOU ARE HERE" location
Designated exits (shown in green)
Relevant fire and emergency equipment (e.g. extinguishers, hose reels, call points)
Location of assembly areas
A legend reflecting the symbols used
A validity date

Optional Elements

Additional information may be included, such as the direction of door openings, north point, first aid stations, hazardous chemical stores, emergency procedures and other site-specific information.
